Stretch Drawing Roller For Plastic Filament Extrusion Line

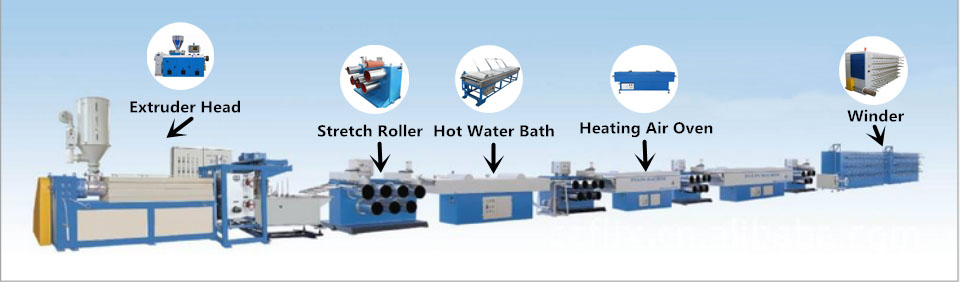

Plastic Filament Extruder

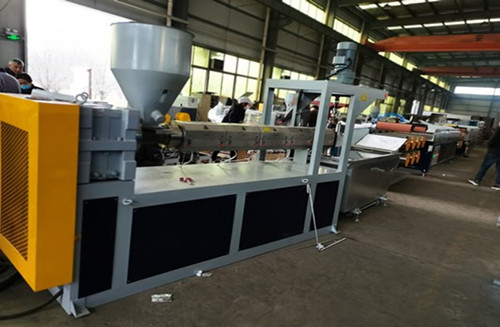

Extruder Head:

Screw adopts Nitriding process, could bear high temperature, more durabile, and good plasticizing quality. Machine with pressure sensor and metering pump to control the f pressure and the flow. It's convenient to change different spinneret size to make different dia of yarn.

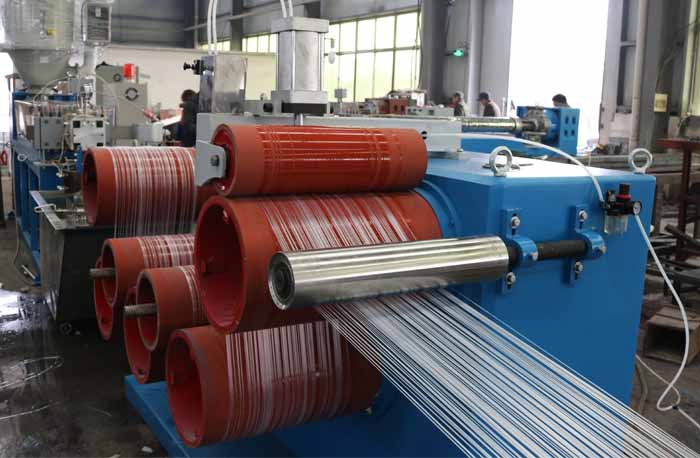

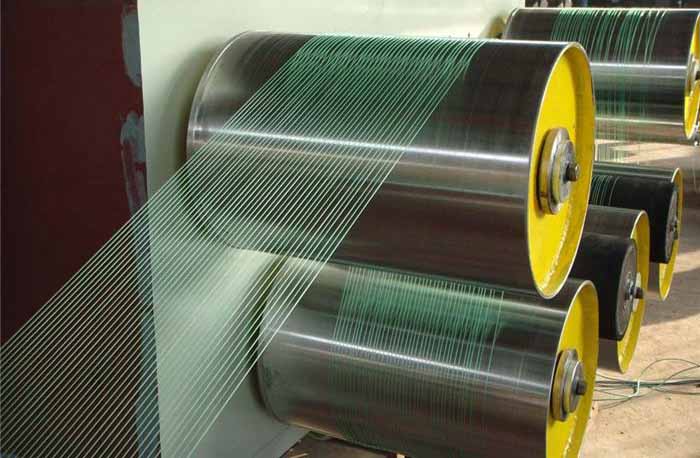

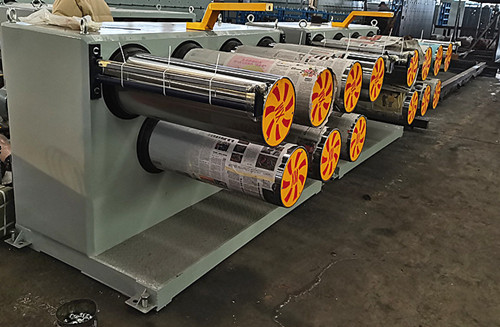

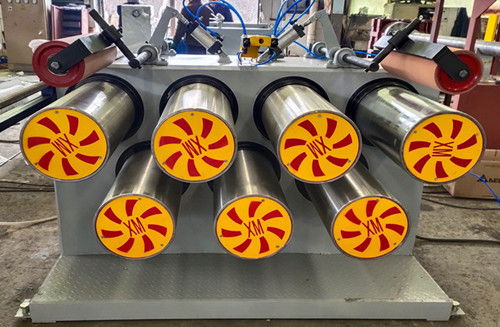

Stretch Roller:

SS material is to make the yarn good stretching, steady speed. We have different roller design for different yarn, 5 roller or 7 roller. with rubber cover or just stainless steel material. the transmission adop gear type make sure the roller running stable no bounce up and down. roller bounce will lead to yarn thickness no evenly.

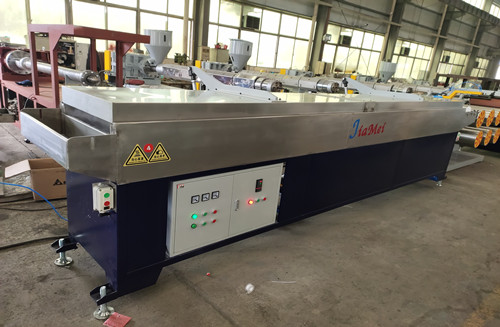

Heating oven:

1. The heating oven use thicker material, has very good thermal insulation performance.

2. Design different oven length according to different yarn, to save power but get good shape.

3. Inside material adopt heavy material, good isnulation, perfect heat preservation effect, hand put on running machine without burn. Save electric power cost.

4. Install pneumatic device for open and close, save labor power.5. Double side blowing, keep temperature inside evenly and stable.

Hot Water Bath:

Our machine adopt thicker stainless steel , the quench tank is adjustable for position left and right or height . Hot water tank use special insulate material , keep temperature very well , save power cost for production .

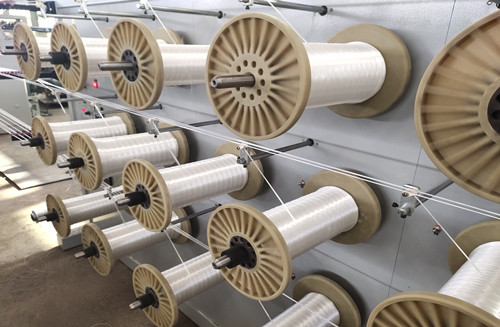

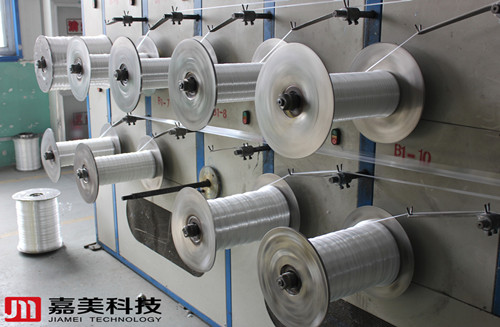

Winder:

Winder has separate motor to control each winding head, for monofilament, there exist several kinds of winding type. The winder have Oliver shape, H bobbin type, etc .

running stable and durable .
