This machine is specialized for PP/HDPE round filament produce . It is widely used for rope and fishing net produce. It also used for some net produce used as filter and fence etc.

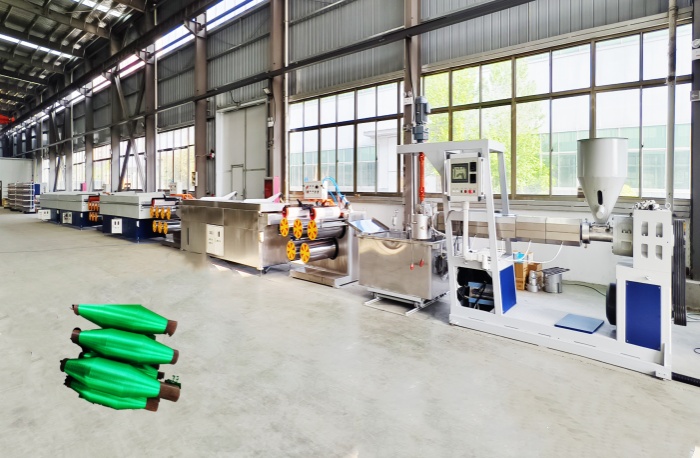

PP/HDPE monofilament extrusion line
1) Takes up small area
2) Low power consumption, famous brand electronic components
3) High output
4) Easy operate, PLC control + touch screen
5) Fast assemble and trainning
6) Easy to maintain
7) Manufacturing experience over 40 years, has rope/net/trimmer line workshop use our own extruder, machine running over 20 years.
Yarn Features:
1. High tensile strength, from 0.06-3.5mm dia, good shape.
2. High heat-resisting property
3. High electric-resisting property(suitable yarn for insulation
4. Low moisture-absorption property
5. The good evenness and mechanical properties of the monofilament can be guaranteed by advanced technology and strict testing means.
Technical Parameter:
Machine Model | Screw Diameter | Machine Capacity | Main Power | Winder Numbers |
JM65 | 65mm | 50kg/hr | 92 | According to the yarn diameter and capacity |
JM70 | 70mm | 75kg/hr | 98 | |
JM80 | 80mm | 100kg/hr | 113 | |
JM90 | 90mm | 125kg/hr | 122 |
Production Process:

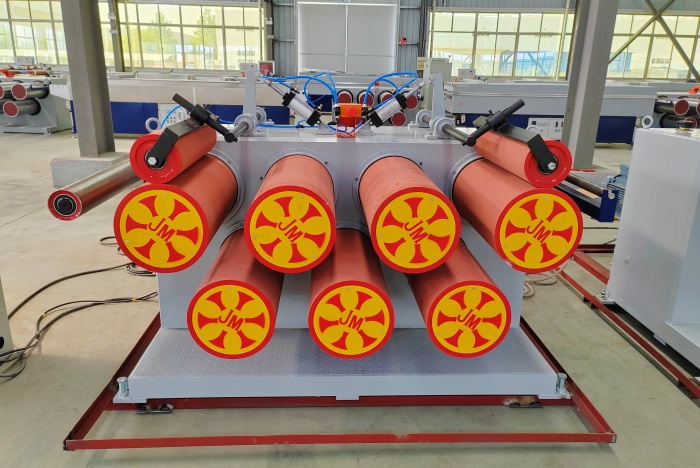

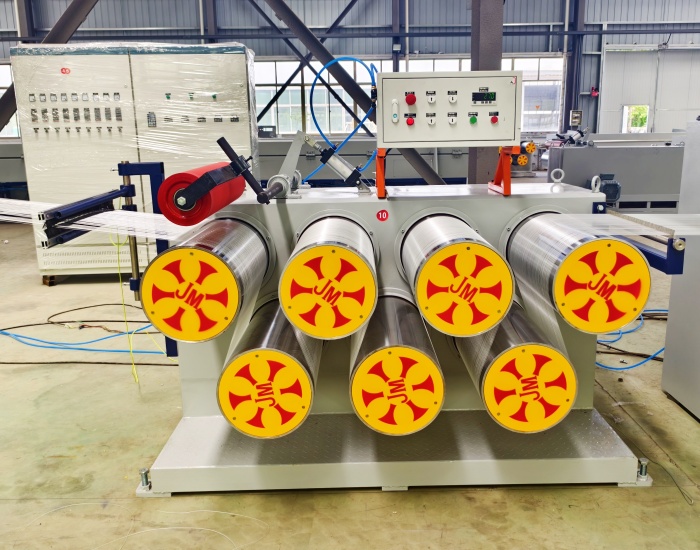

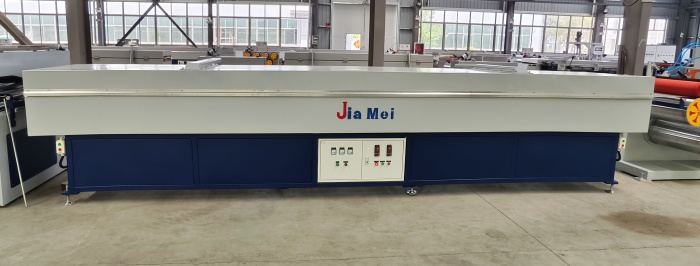

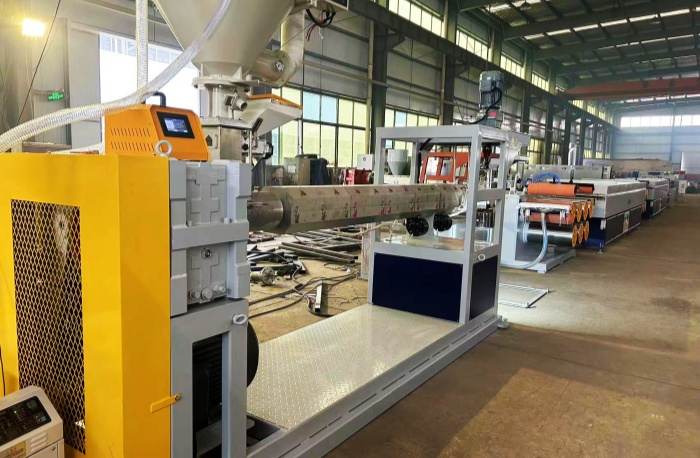

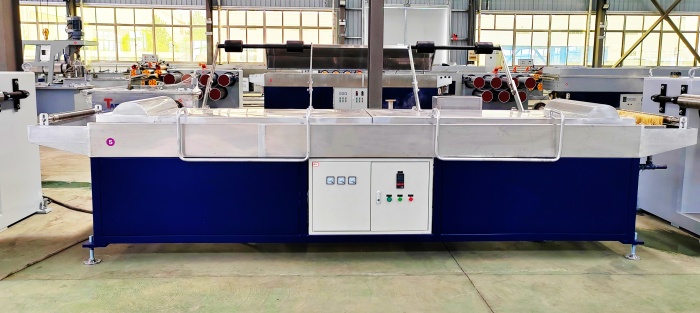

Raw material (PP,PE) → extruder head → water cooling → stretching roller → heating → stretching roller → winder
PP/HDPE Monofilament Yarn Application:
PP monofilament: rope, net, street brush, car cleaning brush, twine, air conditioner filter, polywire, polyrope, polytape for fence, chemical filter( cloth, bag), filter mesh etc.
HDPE monofilament: fishing net, agriculture net( anti-bird net, anti-insect net, anti-hail net, sunshade net, wind net etc), sports net, safety net, tow rope, Conveyor belt, mesh bag, rope , bath ball, webbing etc.
FAQ:
1. What's the model you have ?
Here are 65mm, 70mm, 80mm, 90mm, 100mm, 110mm for your choice
2. For making pp monofilament, will you have same design of machine ?
NO, base on different final products, the design exist difference, like for pp brush, it need hard and strong , so need more hot ovens to form, generally we configue 4, and for making rope, one hot water is enough
3. Whats' the yarn size can do ?
The minimun we can do 0.06mm, and for some products like brush , we can do 2-3mm
4. What's the winding type you have ?

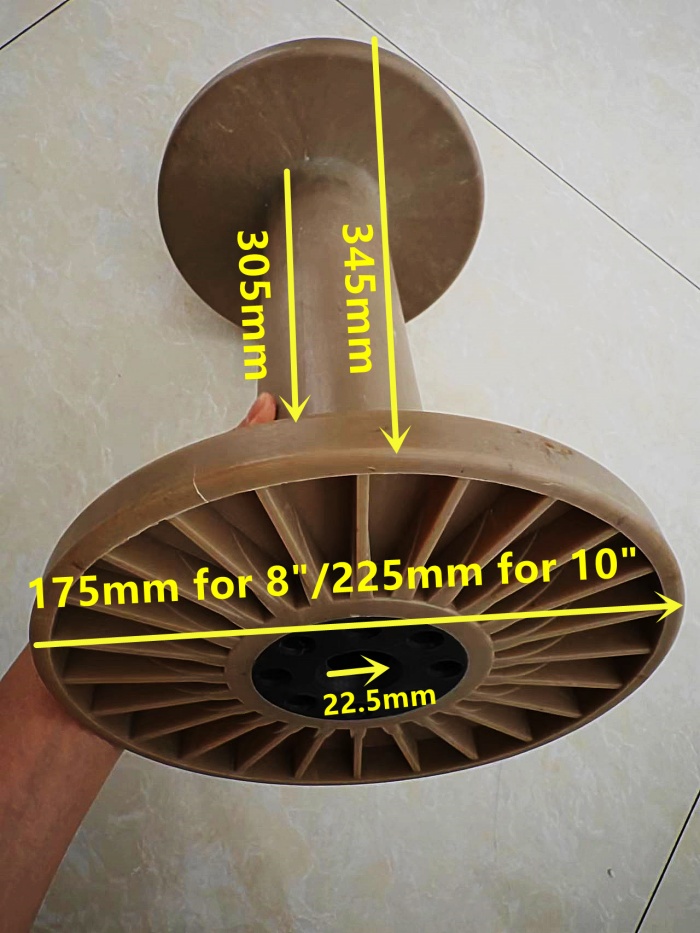

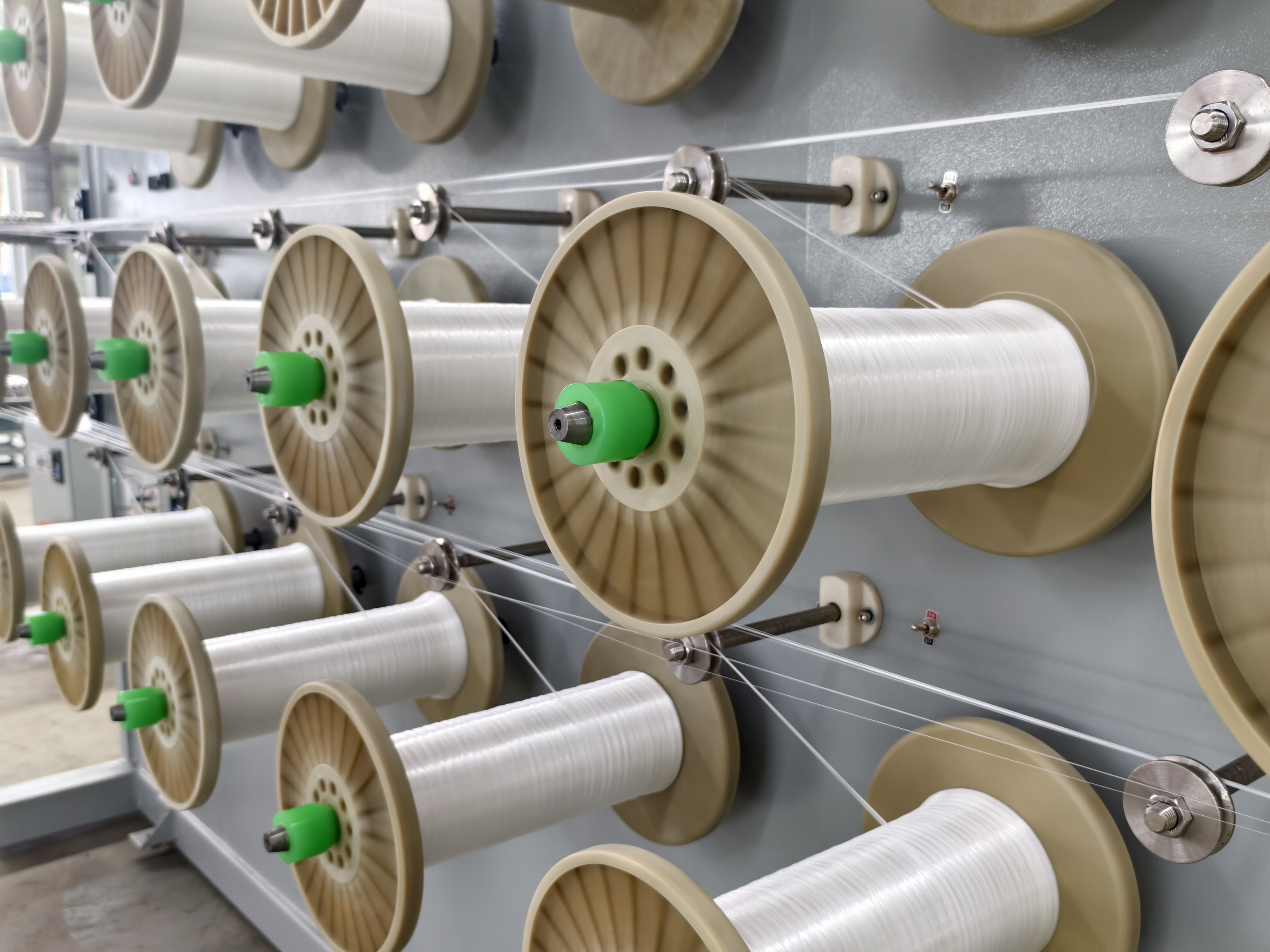

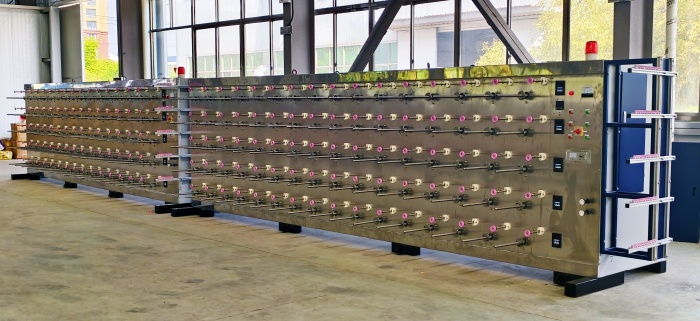

For pp and hdpe, generally is olive type, 3-5kg, and base on clients request, we can use nylon bobbin, paper bobbin, and big frame for brush / broom yarn winding.
Our Service:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* With online device, our team is 24hr at your service.
After-sales Service
* After machine delivery, we will arrange engineer and skilled worker come to customer's factory help with machine start running and training.
* We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
* Provide free upgrades and maintenance for software system within warranty period.
* Provide preferential lifetime maintenance of all equipment, spare parts are charged according to the prevailing market price after warranty period.
* With online device, our team is 24hr at your service.
