This machine is specialized for PET virgin or recycle round filament produce.It can used the bottle flakes as material. The fiber is smoothly and straight. It is popular used for broom & brush making.
PET monofilament extrusion line
1) Machine with automatic-control system, gear drive, auto-loader etc.
2) Automatic controlling system, the entire production line adopts new control system, delta frequency and advanced PLC, more stable and high efficiency.
3) Single screw extruder: Screw adopts Nitriding process , could bear high temperature, more durable, and good plasticizing quality. Machine with pressure sensor and metering pump to control the pressure and the flow. It's convenient to change different spinneret size to make different dia. of yarn.
4) Cooling system: steady temperature ensure the twine soft and shiny with good feature.
5) No.1 and No.2 stretching: ss material is to make the yarn good stretching, steady speed.
6) Heating system: half of heating tube will stop after temperature getting to the settled data, this could reduce the cost, low consumption.
7) Winder has separate motor to control each winding head, there exist several kinds of winding type.
1. Reasonable design, stable quality, with 40 years of manufacture experience keeping optimization and improvement.
2. High efficient, low consumption, create better economical benefit.
3. Produced yarn with evenness size high tenacity.
4. To optimize design of man-machine engineering, centralized control, PLC&touch screen, easy operation.
5. Inspection and testing machine before delivery, assemble and put into production immediately at customer's workshop.
6. Give comprehensive technical service after machine delivery.
|Machine Model||Screw Diameter||Machine Capacity||Main Power||Winder Numbers|
|JM35||35mm||550kg/24hr||50kw||According to the yarn diameter and capacity|
raw material (PET) → extruder head → water cooling → stretching roller → heating → stretching roller → winder
PET Monofilament Application:
PET virgin: zipper, zip fastener, sewing wire, embroidery yarn, screen mesh, webbing tape, 3D mesh woven network(tube), filter cloth, etc.

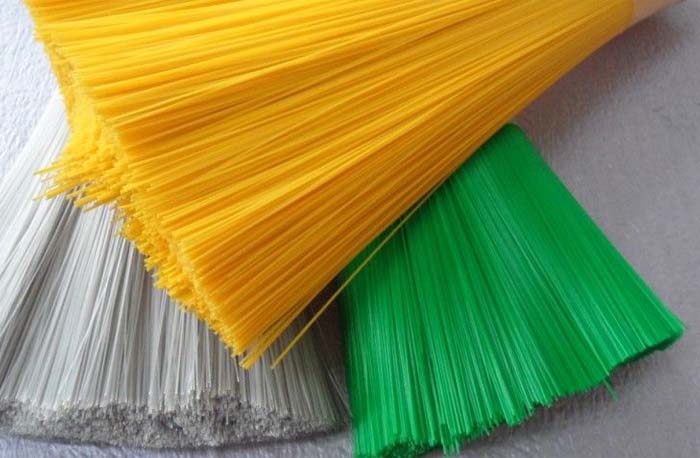

PET recycled: brush, broom, rope , net, etc.
1. What's the model you have ?
Here are 35mm, 40mm, 45mm, 50mm, 65mm, 70mm, 80mm, 90mm, 100mm, 110mm for your choice.
2. Whats' the yarn size can do ?
The minimun we can do 0.06mm, and for some products like brush , we can do 2-3mm.
3. What's the winding type you have ?
For pp and hdpe, generally is olive type, 3-5kg, and base on clients request, we can use nylon bobbin, paper bobbin, and big frame for brush / broom yarn winding.
