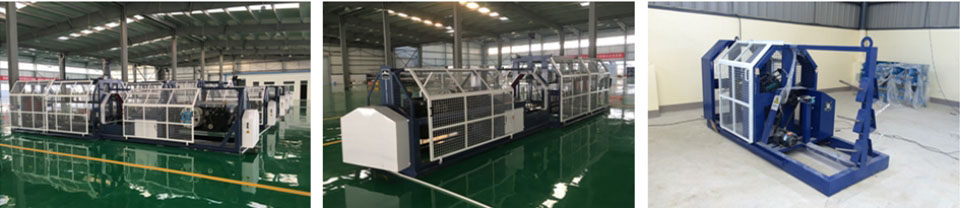

Rope making machine is suitable for twisting 3 strands or 4 strands rope/twine production of different plastic material, such as HDPE(polyethylene) & PP(polypropylene) monofilament, multifilament and danline, raffia, fibrillated yarn, polyester, nylon, cotton etc other synthetic material.
Raw material requirements: plastic wire, round wire, flat wire, monofilament, cotton and linen isometric fiber.
Machine Features:
1) Rope twisting making machine is equipped with frequency converter, length meter counter,overtranvel-limit switch and auto-stop device at presen length.
2) It is easy to adjust the rope tensility and change the direction of twist and lay length.
3) It consists of rope making device and strand making device can produce rope with Dia. 3-26mm after continuous operation once omit extra
4) Working steps from strand making to rope making, thereby the production efficiency is greatly improved.
5) There is no waste yarn or scrap coming out during the production process,so the ropes are more attractive and durable.
6) Good quality ensure the stability and low cost, 40 years experience in this field could reduce the repairment, high efficiency, low noise.
Parameter:
| Model | JM3-6 | JM4-8 | JM8-14 | JM12-18 |
| Rope size | Φ3-6mm | Φ4-8mm | Φ8-14mm | Φ12-18mm |
| No. Of strands | 4 strands(with core) | 4 strands(with core) | 4 strands(with core) | 4 strands(with core) |
| Voltage/Frequency | 380V,3phase,50Hz | 380V,3phase,50Hz | 380V,3phase,50Hz | 380V,3phase,50Hz |
| Power | 7.5Kw | 8.5Kw | 7.5Kw | 11Kw |
| Take-up bobbin size | Φ400mmX100mmX200mm | Φ500mmX130mmX260mm | Φ600mmX150mmX380mm | Φ700mmX150mmX400mm |
| Pay off bobbin size | Φ175X300mm(Inner) | Φ175X300mm(Inner) | Φ175X300mm(Inner) | Φ175X300mm(Inner) |
| Outline dimension | 4800X1800X1900mm | 5200X1800X2000mm | 8200X2000X2000mm | 10000X2200X2200mm |

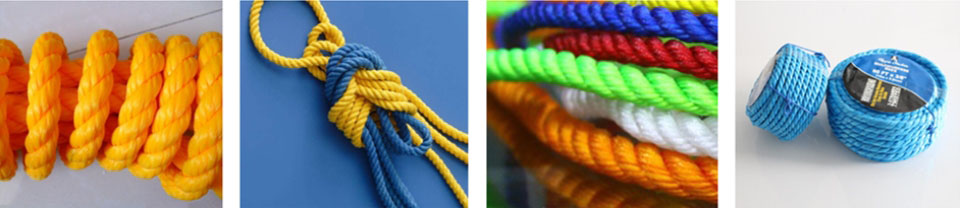

Plastic Rope Machine Application:
It is widely used for twisting of all kinds of PP/HDPE/PET/Nylon/Cotton twine and twisted ropes in different size.
Tips:
If you are interested in our machine, pls kindly let me know the following information, so that I can recommend the most suitable machine for you :
1. Capacity request ? Kg/24Hr
2. The usage of yarn ? Yarn pic?
3. PP, HDPE , PET or other materials ?
4. The industrial voltage in your country ?
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* With online device, our team is 24hr at your service.
After-Sales Service
* Training how to instal and use the machine, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
* Engineers available to service machinery overseas.
* With online device, our team is 24hr at your service.
