Machine Description

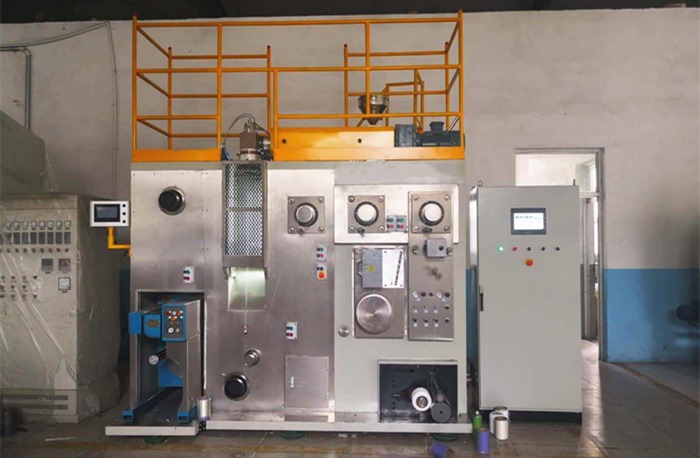

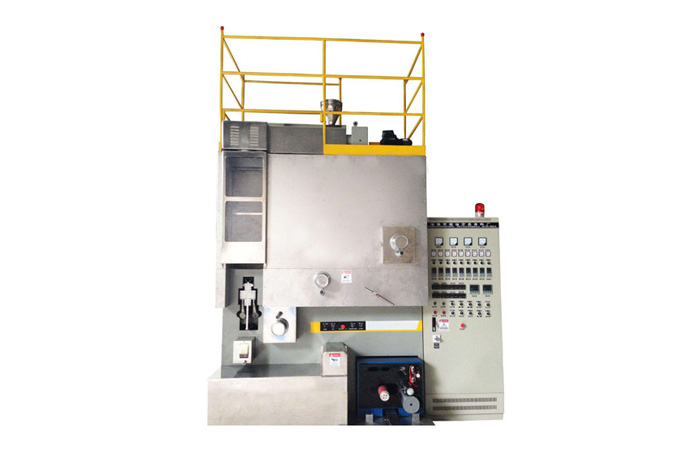

mini color master batch test spinning machine is used for testing color , then used in the big spinning line to save time and material, very easy operate, and low power consumption, short time to heat, high efficiency.
1) max 1000-1200m/min.
2) One bobbin, capacity:4-5kg/h
3) power: < 10kw
Technical Parameter
| Item | FDY | POY | BCF | ATY | DTY |
| Pos. | 1 | 1 | 1 | 1 | 1 |
| Fiber Denier | 500-1500(Single Yarn) | ||||
| Spinneret/Position | 1 | 1 | 1 | 1 | 1 |
| Winder Speed | 500-1200m/min | ||||
| Capacity(900d) | 4kg/hr | ||||
| Screw Dia. | 30mm | ||||
| Power | 20kw | ||||
| Machine Size | 3*3*4.5m | ||||
Machine Details
Application
Mini FDY/BCF/POY Spinning Color Masterbatch Testing Machine is mainly used for the color masterbatch of FDY, BCF and POY multifilament yarn color testing, low waste and consumption.
