Machine Description
mini color master batch test spinning machine is used for testing color , then used in the big spinning line to save time and material, very easy operate, and low power consumption, short time to heat, high efficiency.
1) max 1000-1200m/min.
2) One bobbin, capacity:4-5kg/h
3) power: < 10kw
Technical Parameter
Item | FDY | POY | BCF | ATY | DTY |
Pos. | 1 | 1 | 1 | 1 | 1 |
Fiber Denier | 500-1500(Single Yarn) | ||||
Spinneret/Position | 1 | 1 | 1 | 1 | 1 |
Winder Speed | 500-1200m/min | ||||
Capacity(900d) | 4kg/hr | ||||
Screw Dia. | 30mm | ||||
Power | 20kw | ||||
Machine Size | 3*3*4.5m |

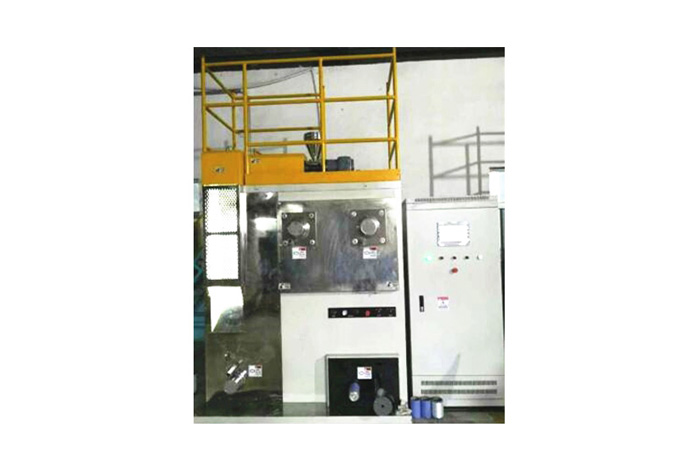

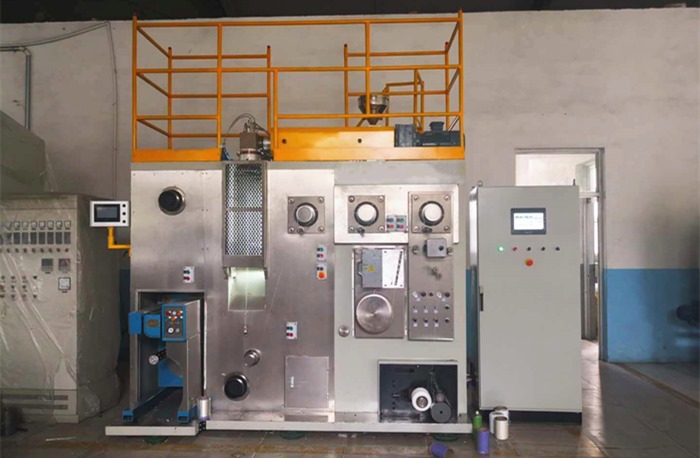

Machine Details
Application
Laboratory FDY Colored Yarn Testing Spinning Equipment is mainly used for the color masterbatch of FDY multifilament yarn color testing, low waste and consumption.
